Aerogel Insulation Over-Wrapping Method

Aerogel heat-insulation material Pyrogel™ XTE is a thermal insulation material with low thermal conductivity and excellent water repellency and flexibility. Nichias has developed an innovative construction method that takes advantage of its excellent performance to contribute to the conservation of Planet Earth.

Product Category

Construction Work (Lagging, Cold Storage, Fire-Proofing and Sound-Proofing)Hot and Cold Insulation WorkOther ServicesEnergy Saving Diagnostic System

Industry

Chemistry & PetrochemistryOil Refining & PetrochemistryChemistryEnergy (Electricity, Gas, Heat Supplies)Thermal Power Stations (Coal)Thermal Power Stations (LNG)Nuclear Power StationsHydrogen and AmmoniaBiomass Power Generation and Heat Supply Plants

Forte

Heat insulation materials that are used outdoors such as at various plants and power stations suffer problems where pipes corrode or the heat insulation functionality declines due to the ingress of rainwater into the seams of the outer material. Nichias has developed its innovative Overwrapping Insulation Method that restores heat insulation functionality to solve such issues. By restoring/improving the heat insulation functionality without removing the existing heat insulation material, it helps save energy and reduce waste.

It restores the heat insulation material functionality that is lost due to the ingress of rainwater.

The water repellency of Pyrogel XTE puts a stop to rainwater ingress, which is the main cause of corrosion under insulation (CUI).

it can be installed without removing the existing heat insulation material, and so it curbs industrial waste.
● With no removal costs, it reduces time spent on labor and significantly reduces the cost of repairs.

Specification

Installation outline

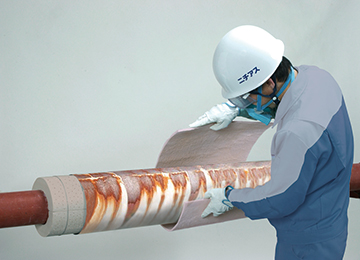

Pyrogel XTE installed onto an existing outer material

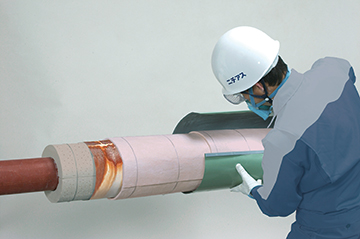

Installing a new outer material

Benefits

The Overwrapping Insulation Method significantly reduced the amount of dissipated heat when used for steam pipes at a chemical plant that uses Nichias products.
Before installation using the Overwrapping Insulation Method

After installation using the Overwrapping Insulation Method

Heat insulation material
Existing heat insulation material 75 mm of calcium silicate heat insulation material
Surface temperature of 40.5°C
Dissipated heat amount of 269 W/m2
*Ambient temperature of 27°C
Heat insulation material
Existing heat insulation material 75 mm of calcium silicate heat insulation material
+ 10 mm of Pyrogel XTE
Surface temperature of 34.1°C
Dissipated heat amount of 64 W/m2
*Ambient temperature of 30°C

Installation Example

Installation example 1: steam pipe

Installation example 2: steam pipe

Related Information

Overwrapping Insulation Method Pyrogel XTE
Energy-saving Overwrapping Insulation Method
Safe and reliable Overwrapping Insulation Method that reduces corrosion under insulation (CUI)
Test to verify the Aerogel Insulation Over-Wrapping Method’s ability to recover heat insulation functionality
See the footage of the existing moist heat insulation material drying.
